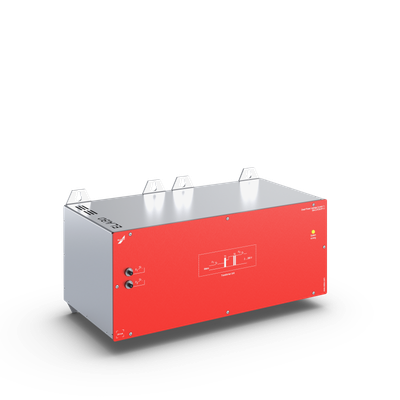

Name: ELABO-Ableitstrommessgerät 1~ mit automatisch geregelter Versorgung, erdfrei
Brand: ELABO
SKU: SM-LC1P-11-ZRM
Availability: OutOfStock

ELABO-Ableitstrommessgerät 1~ mit automatisch geregelter Versorgung, erdfrei

Store / Measuring instruments / Standalone test units / Ableitstrom

0,00 EURO

Sold out

Price incl. VAT (19%) 0,00 EURO

Excl. shipping

Product Details

Lieferzeit: 16-18 weeks

ELABO leakage current test module for 1-phase test objects with control for supply modules without earth potential reference for operating

the test object

- Installation in switch cabinets

- Internal and external supply of the of the test object possible

- Testing according to standards in conjunction with ELUTION software + standards licenses

- Max. 2 leakage current basic measuring circuits can be integrated (options) (MD according to EN60990 B3/B4/B5, MD according to EN60601 MED B12, MD according to UL/CSA)

- Control and parameterization via the Ethernet interface and protocol

- Performance of the test in various operating operating modes and fault scenarios via Basic test steps, predefined in standards files (normal operation without error, normal operation with N error, normal operation with PE error, Reverse polarity operation without fault, reverse polarity operation with N-fault, reverse polarity operation with PE-fault)

- Variable test sequence, execution of the test (basic test steps) can be individually selected and deselectable.

- Adjustable test time and warm-up phases before carrying out the test

Front panel connections (terminal blocks):

- External power supply ( test object)

- Test object connection, 1-phase, vi1, vi2

- Additional connections for tests according to EN60601-1, MED

Connections on the underside:

- Mains connection (GST 18 built-in plug)

- external power supply 24VDC, max. 1A(fused) for digital I/O, RC, warning light (2-pin WAGO plug)

- Ethernet interface (RJ45 socket)

- Connection for warning lamp set 24VDC (M12- socket, 5-pin)

- RC remote control connection with display (15

- pin D-SUB, female)

- Digital I/O connection (25-pin D-SUB, female)

- Connections for 1-phase supply module for regulating the operating / test voltage (plug connector (3-pin) with interlock for power supply and power supply and M12 socket (8-pin) for regulating the control of the electromechanical transformer)

T E C H N I C A L D A T E S :

Supply voltages (test module):

- Mains connection, 230V AC, 1-phase, max. 2A (fused), 50/60Hz, max.

Mains voltage fluctuation ± 10 %

- External power supply 24 V DC, max. 1A (fused), (DIO, RC, warning lamp, SK)

Supply voltage / test voltage ( test object):

- Internal supply via separate supply module supply module without earth potential reference, 50V ... 280V AC, 1-phase, max. 4A (rev. fused), 50/60Hz mains-dependent

- External power supply, 50V ... 280V AC, 1-phase, max. phase, max. 15A (rev. fused), 50 ... 400Hz

Measurements during operation / testing of the device under test:

- Operating / test voltage: 10V ... 285V AC, 50Hz ... 400Hz

- Operating current: 0.1A ... 15A AC, 1-phase

Measurements Leakage current:

- 5 µA ... 10 mA DC / AC, 50Hz ... 1MHz

- 3 leakage current measuring ranges: 0.1mA / 1mA / 10mA

- Measurement types: I_trms, I_ac, I_dc, I_peak, I_mad (depending on the test standard used)

- Fixed measuring range according to I_lc_max or automatic measuring range adjustment

Monitoring:

- Operating voltage: U_op_min ≤ U_op ≤ (U_op + 10%)

- Test voltage: U_test_min ≤ U_test ≤ (U_test + 10%)

- Operating current: I_op_min ≤ I_op ≤ I_op_max

- Leakage current: I_lc_min ≤ I_lc ≤ I_lc_max (max. 2 leakage currents for tests according to standard EN60601-1, MED)

Adjustable test time and warm-up phases:

- 1s ... 1d adjustable in 0.1s steps

Setting accuracy, deviations:

- Operating / test voltage: 50V ... 280.0V ±1% of SW, ±0.5V

Measuring accuracy, deviations, display of measured values (resolution): (see data sheet)

Including ELABO expansion module Digital I/O:

- 4 digital inputs: START, STOP, REMOTE, reserve

- 6 digital outputs: test item iO, test item niO, system error, test in progress, pulse (250ms)for pneumatic test cover, ext. discharge via additional relay

Mounting:

6 holes for screwing to a mounting plate mounting plate

Dimensions:

426mm (84TE) x 220mm x 235mm (W/H/D)

Weight:

approx. 8.5kg

Subject to technical changes.
