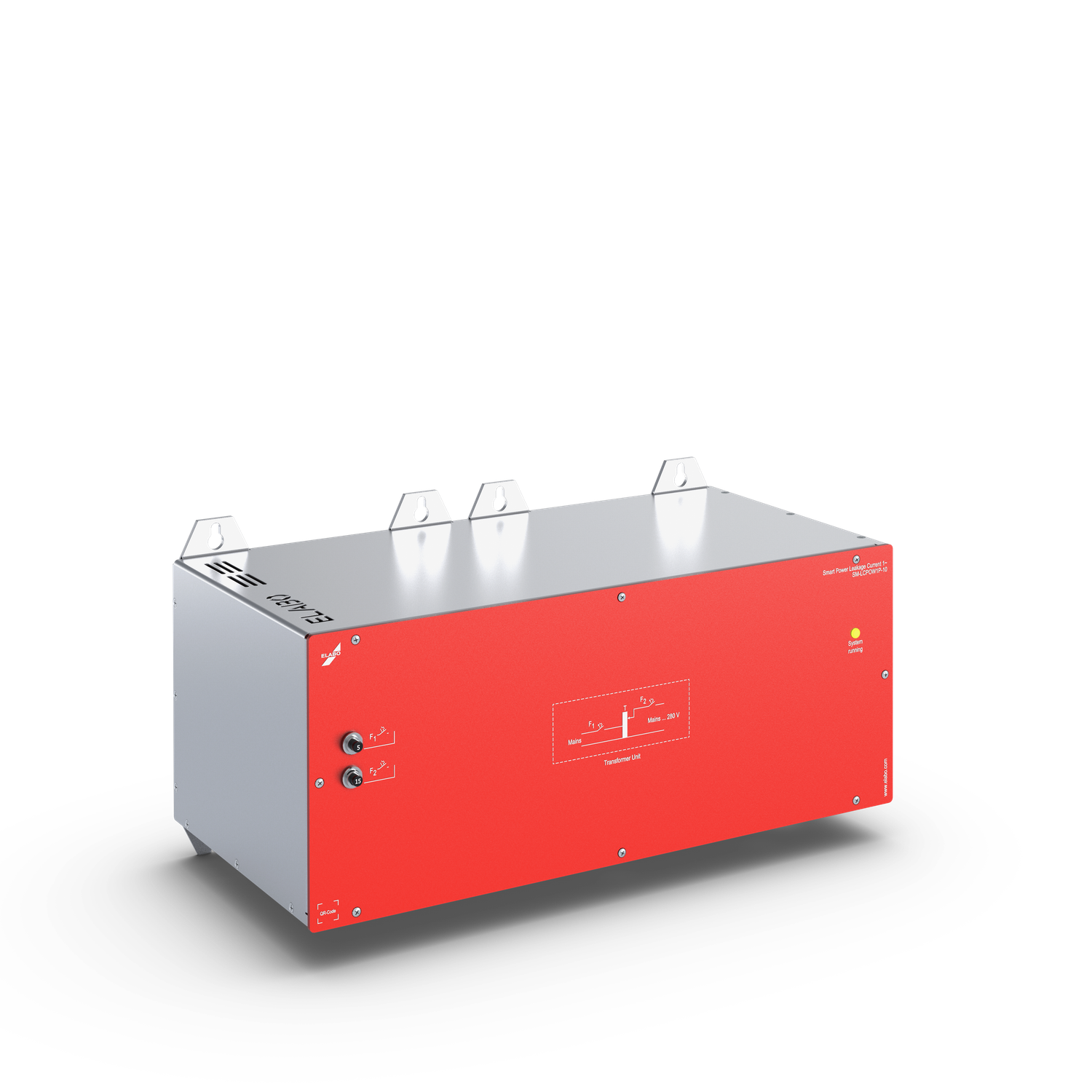

ELABO leakage current measuring module for ELABO leakage current supply module for 1-phase test objects with earth potential reference
Store
/
Measuring instruments
/
Standalone test units
/
Ableitstrom
0,00 EURO
Sold out
Price incl.
VAT (19%)
0,00 EURO
Excl.
shipping
Product Details
Lieferzeit:
16-18 weeks
ELABO leakage current measuring module for
ELABO leakage current supply module for 1-phase test objects with earth potential reference
- Installation in switch cabinets
- Setting and regulation of the output voltage
output voltage only possible in conjunction with
a leakage current test module
- Mains frequency-synchronized, variable
output voltage via transformers,
fused on the primary and secondary side
- Changing the output voltage via
electromechanical variable transformer
Connections on the underside:
- Mains connection (GST 18 built-in plug)
- Connections for 1-phase
leakage current test module for regulating the
operating / test voltage
test voltage (plug connector (3-pin) with
interlock for power supply and M12 connector
connector (8-pin) for regulating the
electromechanical transformer)
T E C H N I C A L D A T A:
Power supply:
Mains connection, 230V AC, 1-phase,
max. 16A, 50/60Hz
Output to leakage current test module :
- Operating / test voltage: U_netz ... 280V AC, mains frequency
- Operating current: max. 15A AC, 1-phase, rev. fused
Mounting:
6 holes for screwing to a mounting plate
mounting plate
Dimensions:
426mm (84TE) x 220mm x 235mm (W/H/D)
Weight:
approx. 25kg
Subject to technical changes.
