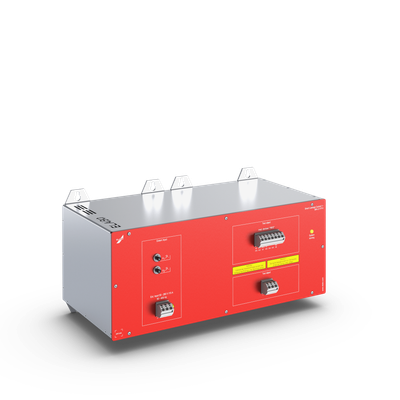

ELABO leakage current measuring module for ELABO leakage current supply module for 1-phase test objects with earth potential reference

Name: ELABO leakage current measuring module for ELABO leakage current supply module for 1-phase test objects with earth potential reference
Brand: ELABO
SKU: SM-LCPOW1P-10-ZRM
Availability: OutOfStock

Store / Measuring instruments / Standalone test units / Ableitstrom

0,00 EURO

Sold out

Price incl. VAT (19%) 0,00 EURO

Excl. shipping

Product Details

Lieferzeit: 16-18 weeks

ELABO leakage current measuring module for
ELABO leakage current supply module for 1-phase test objects with earth potential reference

- Installation in switch cabinets

- Setting and regulation of the output voltage

output voltage only possible in conjunction with

a leakage current test module

- Mains frequency-synchronized, variable

output voltage via transformers,

fused on the primary and secondary side

- Changing the output voltage via

electromechanical variable transformer

Connections on the underside:

- Mains connection (GST 18 built-in plug)

- Connections for 1-phase

leakage current test module for regulating the

operating / test voltage

test voltage (plug connector (3-pin) with

interlock for power supply and M12 connector

connector (8-pin) for regulating the

electromechanical transformer)

T E C H N I C A L D A T A:

Power supply:

Mains connection, 230V AC, 1-phase,

max. 16A, 50/60Hz

Output to leakage current test module :

- Operating / test voltage: U_netz ... 280V AC, mains frequency

- Operating current: max. 15A AC, 1-phase, rev. fused

Mounting:

6 holes for screwing to a mounting plate

mounting plate

Dimensions:

426mm (84TE) x 220mm x 235mm (W/H/D)

Weight:

approx. 25kg

Subject to technical changes.
